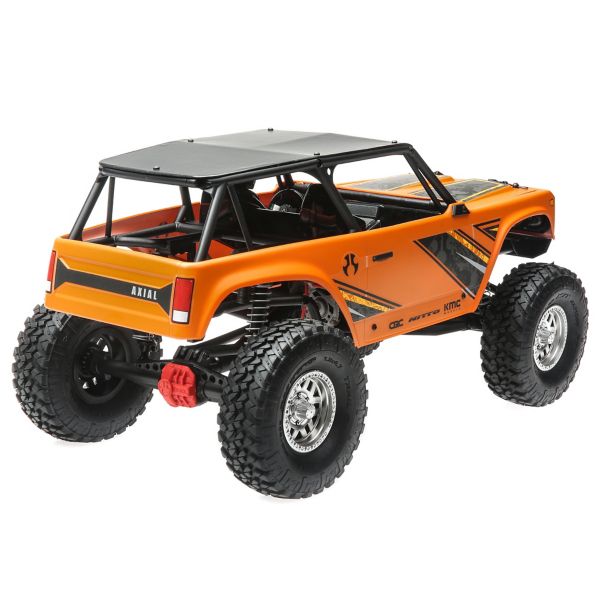

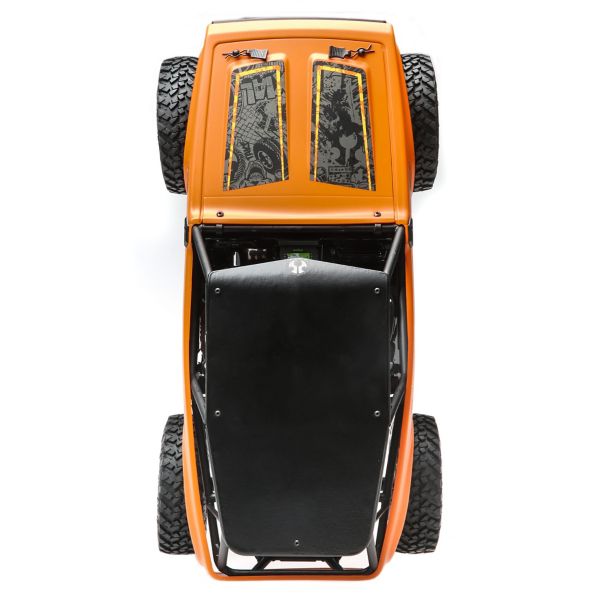

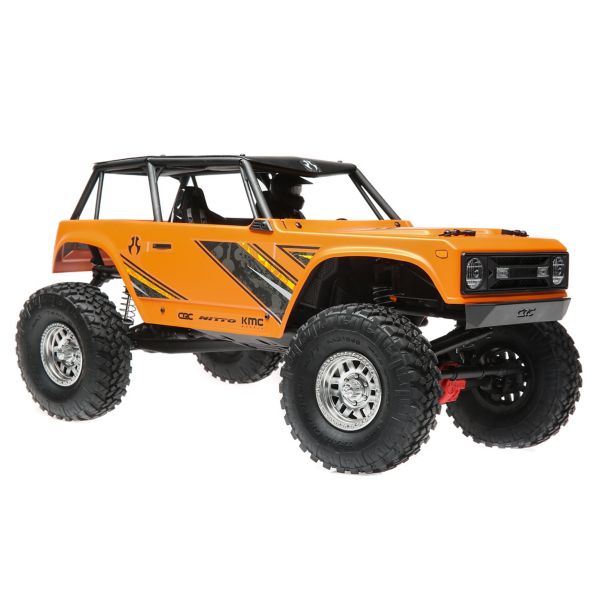

1/10 Wraith 1.9 4WD Rock Crawler Brushed RTR, Orange

Strong Tube Chassis With Forward-Mounted Battery Position

The foundation of the Wraith 1.9 platform is a refined, full-tube frame chassis - the first full tube frame in RC, with the durability you'll need for aggressive action on, up and over the rocks. The chassis mounts your battery in front, allowing easy access and providing the perfect weight distribution for aggressive climbing.

Boat Sides/Skid Plate For Extra Clearance

Refining the successful 2.2 Wraith chassis design, Axial increases the ground clearance for this version by reducing the size of its skid plate and lower rails. Boatsides on the skid plate improve handling on rough terrain by helping the vehicle slip through and past obstacles.

Chassis-Mounted Servo For Realistic Looks

In pursuit of scale looks, Axial moves the servo off the top of the axle and onto the chassis - just as a full-size truck has its steering box located on the frame. The front suspension design also helps reduce bump steer as much as possible for the best driving experience.

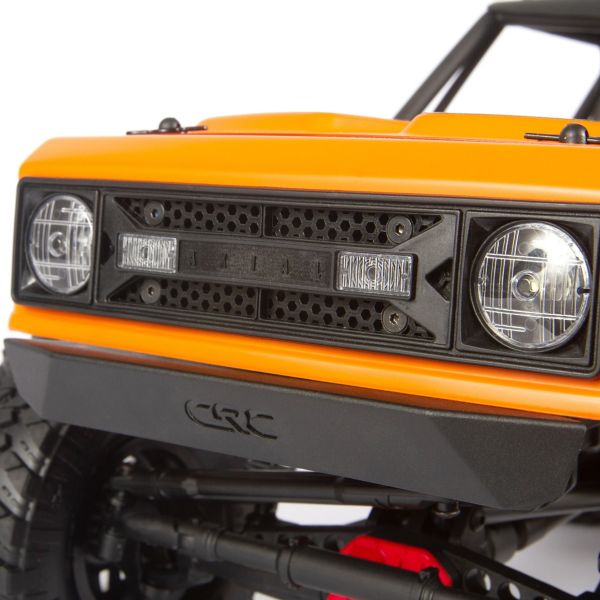

Molded Plastic Grille With Led Lights

The front end of the polycarbonate Wraith 1.9 body is highlighted by a molded plastic grille featuring two large, 5mm lamps with factory-installed LEDs. Your vehicle's realism keeps on shining after the sun goes down! Clear rectangular lenses cover two smaller, 3mm holes (LEDs for these are not included).

Radiator Detail Behind Front Grille

The Axial attention to scale realism is on display throughout the Wraith 1.9 RTR's front end. Look closely into the front grille, for example, and you'll notice additional molded detail that reproduces an intricate honeycomb of (non-functional) radiator cooling fins.

Protective Inner Fender Wells

Molded inner fender wells help to reduce routine maintenance by keeping dirt and debris kicked up by the tires from entering the chassis. Plus, they're another example of Axial ingenuity: the wells double as part of the battery tray and feature simulated cooling vents for added realism.

Receiver Box Molded As Replica V8 Engine

Spektrum™ STX2 Transmitter

The STX2 2-channel radio system offers many features of higher-end 2.4GHz radio systems.

• Built-in 3-position throttle limiter
• Steering and throttle rate and trim adjustments with throttle and steering reversing
• FHSS 2.4GHz protocol for extended range and interference-free performance

Spektrum™ SRX200 Receiver

The SRX200 is a 2-channel 2.4GHz receiver that operates on the FHSS modulation. It's conformal coated to help prevent damage from water, dust, and other elements, and also features an extra-long antenna lead for easy and effective antenna placement.

Tactic® TSX45 Metal Gear Servo

The included, water-resistant Tactic TSX45 metal gear servo is rated at 151 oz-in of torque for massive turning power. Dual ball bearings provide smooth, precise movement for the metal gear train.

Axial® 35T Electric Motor

Providing an even balance of speed and crawling, the 35-turn brushed motor features a worry-free design with an integrated cooling fan for extended periods of use. Just plug and go!

Dynamite® Electronic Speed Control With Drag Brake

The Dynamite ESC is 3S LiPo capable, yet easily switched between LiPo and NiMH batteries with a simple jumper. No more complicated procedures!

• LED light controller built-in with dual LED outputs for headlights/taillights
• Jumper 1 provides a simple plug and play choice between LiPo or NiMh
• Jumper 2 switches Drag Brake settings
• Waterproof design with IC3™ plug / laser etched heat sink
• Laser-etched heat sink

Licensed 1.9 Nitto Trail Grappler M/T Tires *

The officially licensed Nitto Trail Grappler M/T Tires offer fantastic off-road performance while still retaining excellent composure for on-road use. They're molded in durable S30 compound with large blocks that provide excellent bite when the going gets tough. 4.7" x 1.9" (119.4 x 48.2mm).

• 4.7" x 1.9" (119.4mm x 48.2mm)
• S30 Compound

Licensed KMC XD229 Machete Crawl Wheels *

Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in satin silver and feature stunning scale detailing on the front and a standard 12mm hex on the back.

• 26mm (1.02") wide
• 53.9mm (2.12") tall

AX10™ Transmission

The ultra-compact, all metal gear transmission provides a wide range of gearing choices. The overall ratio can be adjusted using different pinion and spur gear choices, allowing super high speed or competition-level crawling.

• Final drive ratio (FDR) 42.00
• Original SCX10 FDR was 33.06

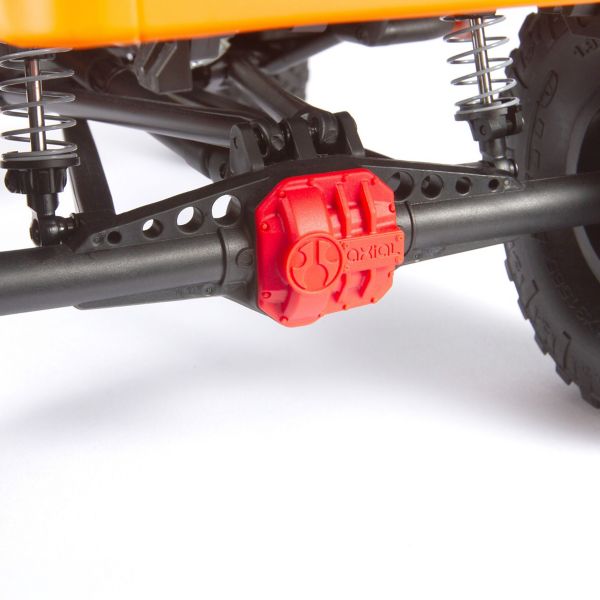

AR44™ Hi-Pinion Axles

WB8 HD Wildboar™ Driveshafts

WB8 HD Wildboar front and rear driveshafts feature a large diameter cross pin (2x11mm) along with an M4 screw shaft (2mm hex drive) for added strength. A center splined slider floats between each end and features added material which reduces flex and fatigue.

• 3-piece driveshaft with strengthened slider-floater tube
• Captured cross pin design eliminates older set screw design for more durability/easy maintenance
• Adjustable length driveline parts included in box

Adjustable Battery Tray

The new adjustable battery tray is now relocated lower and further forward for better weight distribution and center of gravity (COG).

• Adjustable tray that prevents the battery from coming loose or shifting while driving.
• Can accommodate batteries up to 32x44x147mm (3S/5,000 mAh).

Scale Accessories

In the box you'll find two highly detailed turbochargers. Install them under the hood for added scale realism! (Two turbochargers included but not installed. Hardware for installation not included.)

Dual Slipper Clutch

Our dual slipper design uses a pad on each side of the spur gear to increase surface area. This allows for more precise tuning and holding power. The spur gear features strong, 32-pitch gearing for high torque applications.

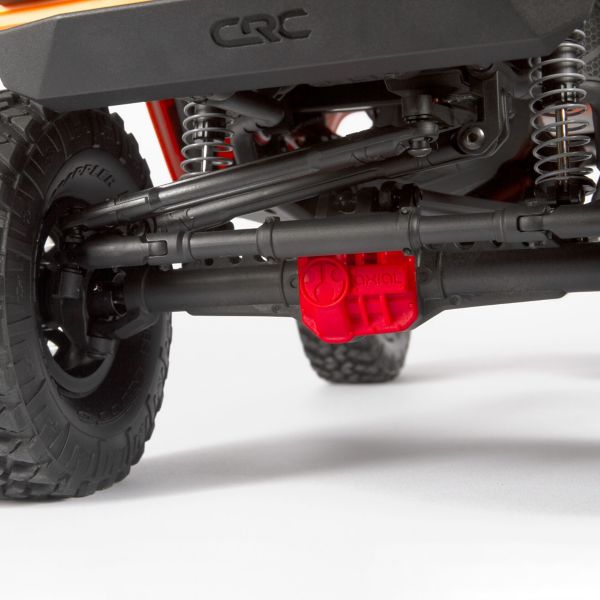

4-Link Rear Suspension

The suspension geometry uses a 4-link design for the rear which is optimized to reduce axle steer and torque twist. It also helps with steep off-camber climbs by having the proper amount of anti-squat and roll characteristics.
