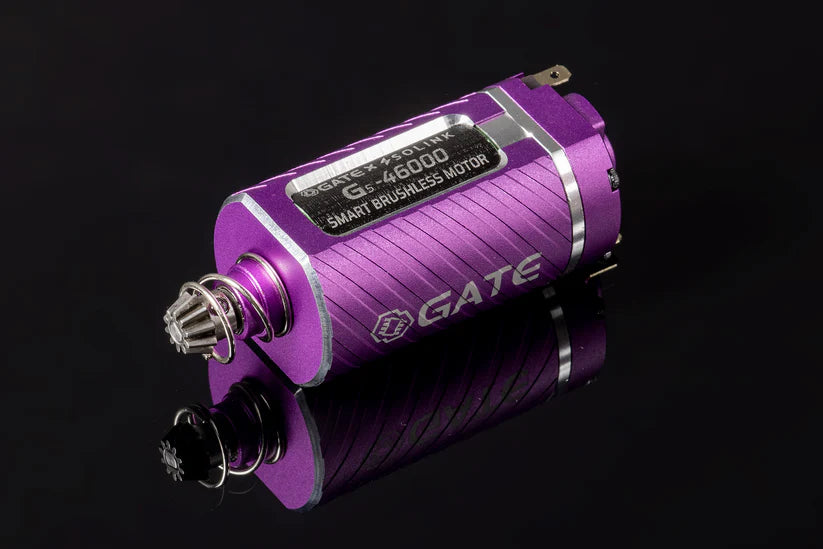

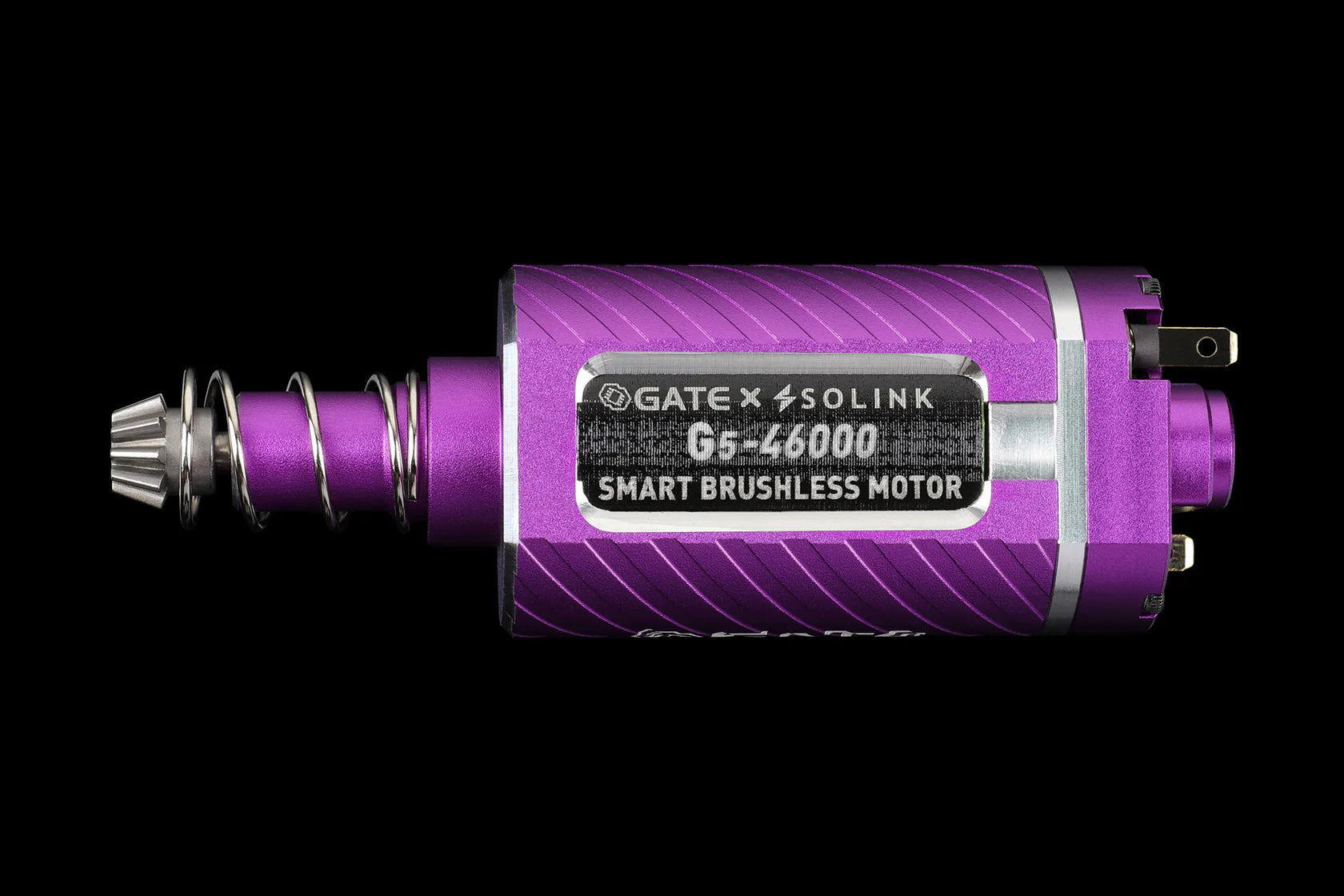

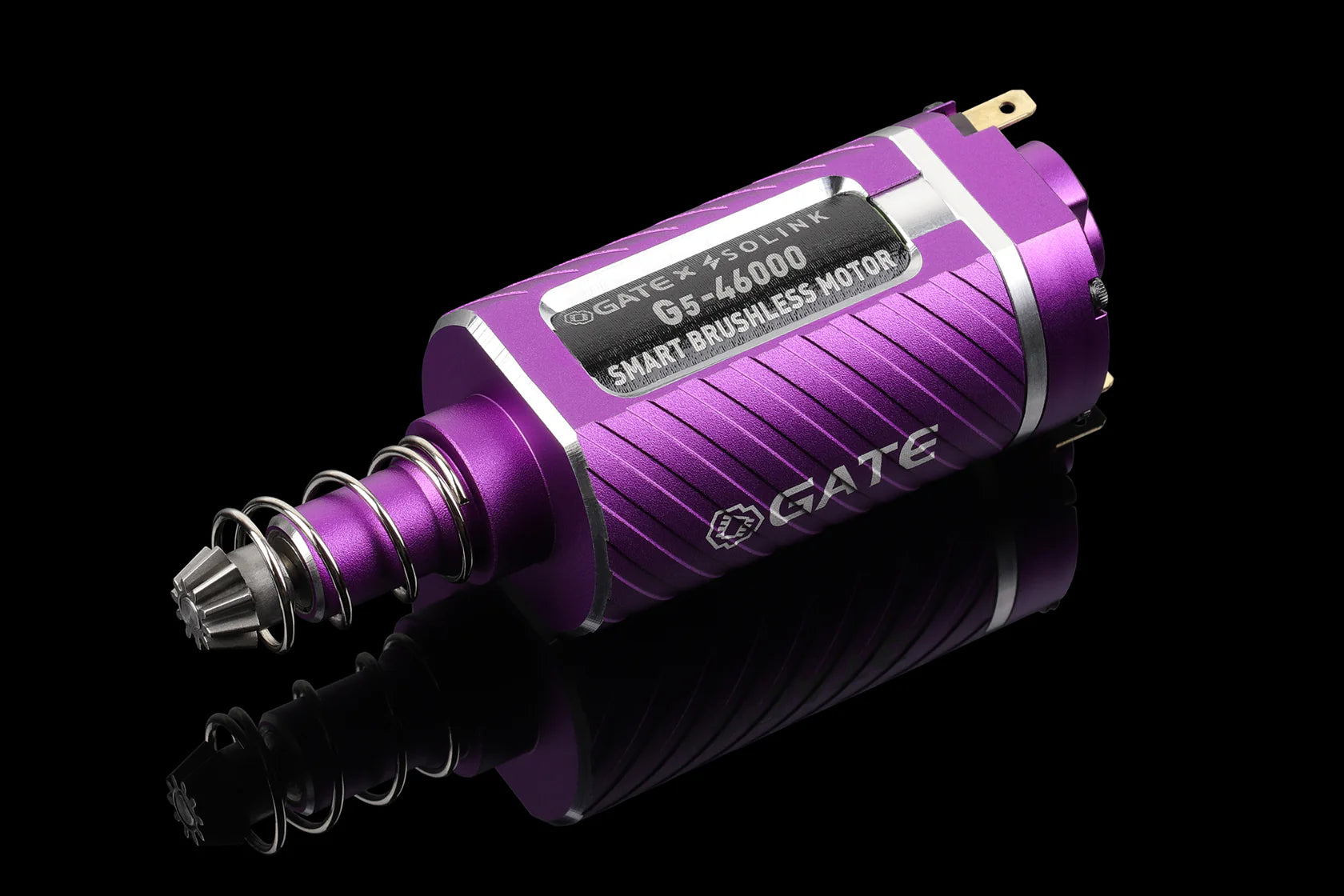

GATE G5 Smart Brushless Motor

Features

• The world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®
• Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking
• Extremely high torque, reaching up to 2334 g-cm
• Very wide RPM range: 10 000 - 46 000 RPM
• Highly durable motor connectors
• Integrated motor shaft manufactured using CNC technology
• Exceptionally effective braking system
• D-type pinion gear

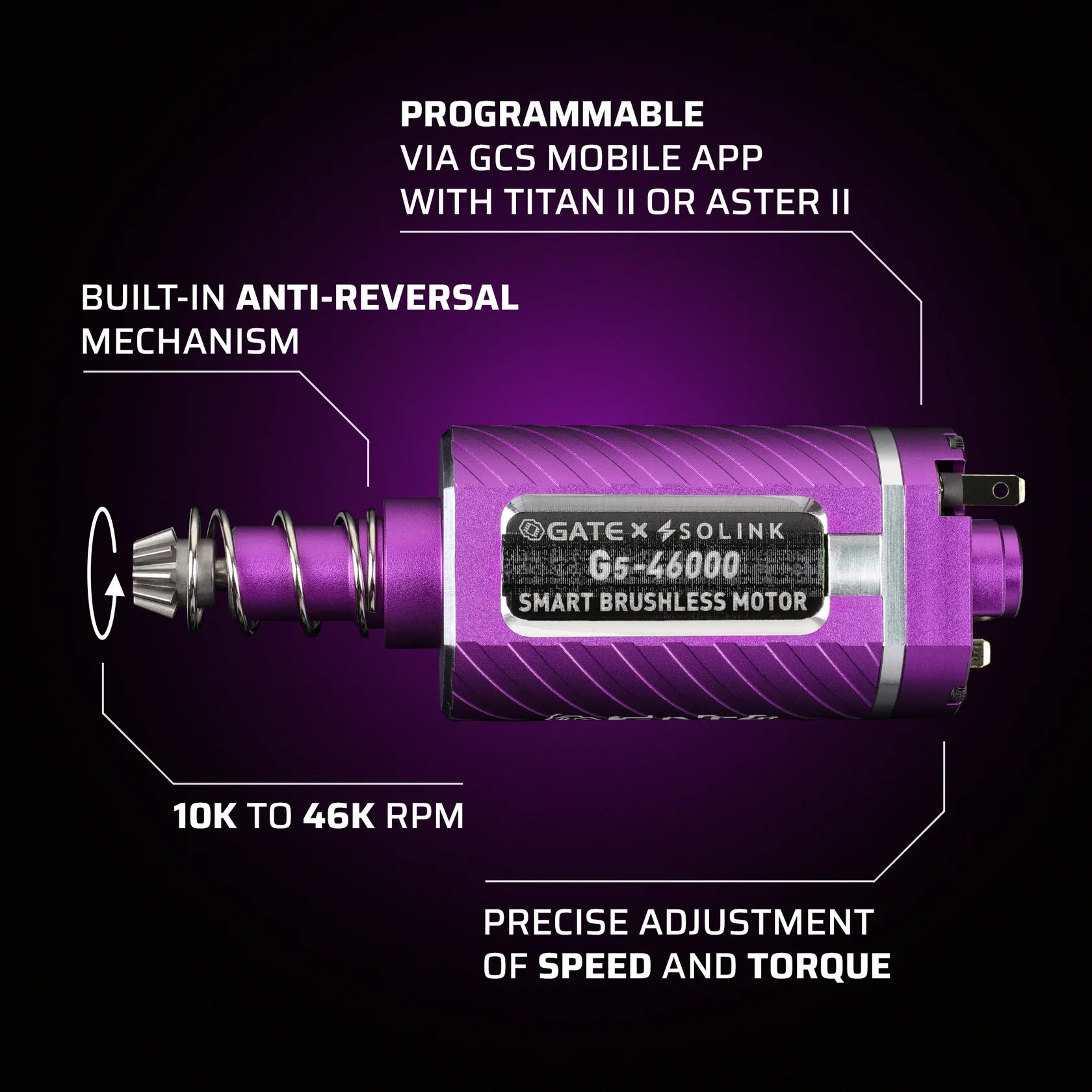

Revolutionary G5 Smart Brushless Motor - the world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®! Thanks to GCS app you get precise adjustment of speed ranging from 10k to 46k RPM.

Torque adjustment gives you the ability to adjust torque to your gearbox configuration. Soft Start extends the life of the gearbox's internal parts, including the gears, meanwhile, Fast Start gives you the quickest possible trigger reaction.

You can change settings even during gameplay, without an additional programmer. What's also unique is that the motor has a built-in anti-reversal mechanism, significantly improving the gearbox's performance. Say goodbye to the problematic standard anti-reversal latches and enjoy quieter operation and even more accurate pre-cocking adjustments. The motor's extremely fast startup ensures an instantaneous trigger response, while its high efficiency reduces battery consumption and motor temperature. High torque enables compatibility with the most demanding replica configurations, and the adjustable rotational speed ensures perfect adaptation to almost any gearbox configuration.

The G5 Smart Brushless Motor is an excellent addition to the GATE ecosystem. It communicates seamlessly with the ASTER II and TITAN II ensuring perfect synergy.

Manufacturer: GATE

Specifications:

Dimensions (mm): 88.5 x 29.5 x 25
Finished Product Weight: 141g
At no Load:

• Speed: 45,800RPM
• Current: 3.2A

At Maximum Efficiency:

• Efficiency: 75.9%
• Speed: 40,987RPM
• Torque: 500 G/CM
• Current: 24.9A
• Output: 205 Wats

At Maximum Output:

• Efficiency: 48.4%
• Speed: 22.950RPM
• Torque: 2334 G/CM
• Current: 105A
• Output: 519 Wats

Supply Voltage Range: 6 - 16.8V

Why use a brushless motor in your AEG? Brushless DC motors have no brushes to get worn out, they represent a huge leap forward in technology. Brushless output significantly higher efficiency and performance, and have a lower susceptibility to mechanical wear than their brushed counterparts.

Brushless motors offer several other advantages, including;

• Higher torque to weight ratio
• Increased torque per watt of power input (increased efficiency)
• Increased reliability and lower maintenance requirements
• Reduced operational and mechanical noise
• Longer lifespan (no brush and commutator erosion)
• Elimination of ionizing sparks from the commutator (ESD)
• Near-elimination of electromagnetic interference (EMI)
