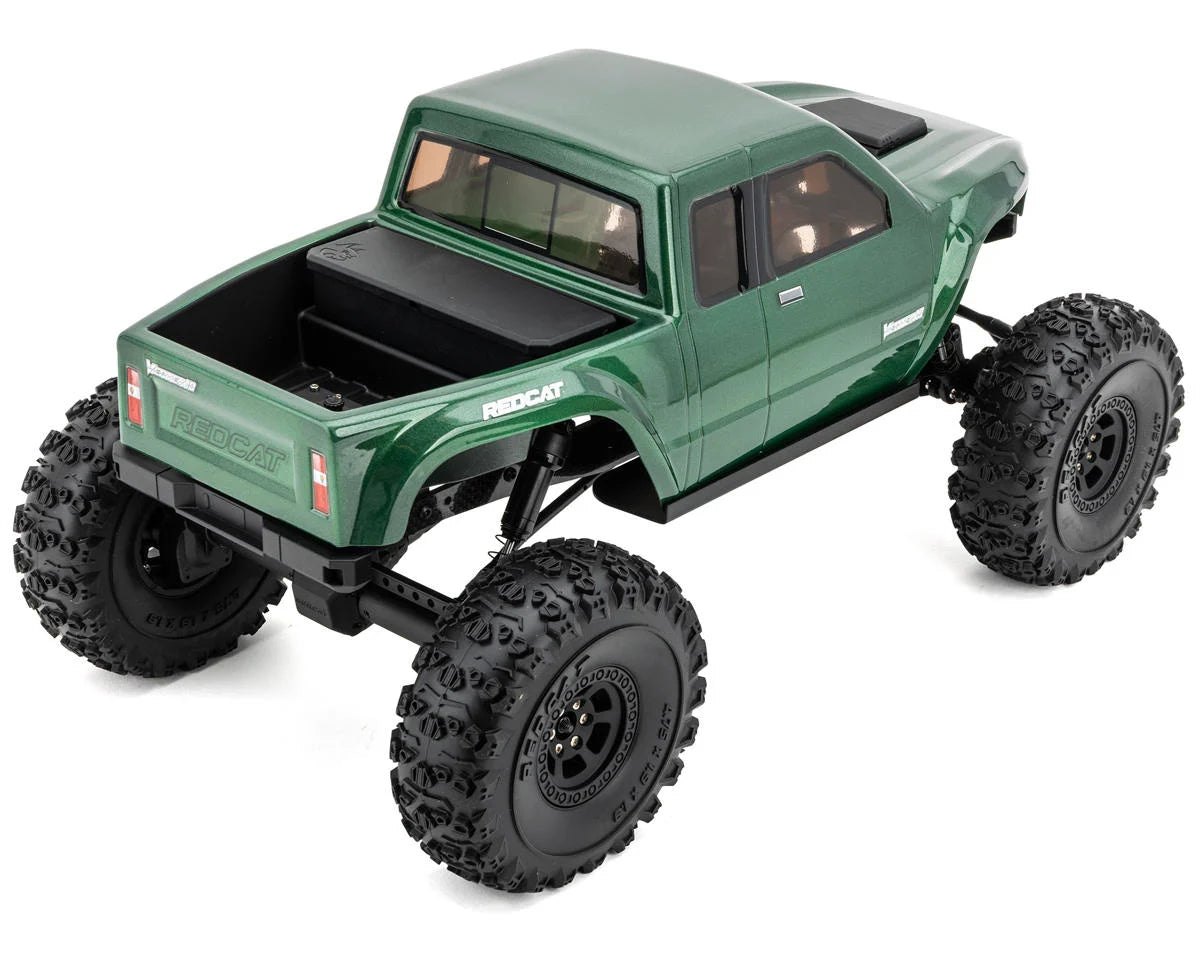

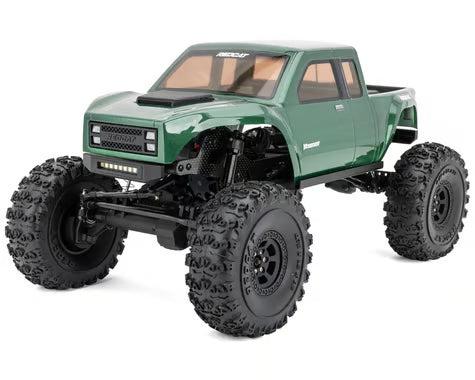

Redcat Vertex-10 1/10 RTR 4WD Electric Brushless Rock Crawler (Metallic Green)

10th Scale Comp Crawler

The Redcat Vertex-10 combines brushless power, durable engineering, and advanced suspension design to take comp crawling to the next level. Its electronics deliver smooth, responsive control, while the reinforced chassis and drivetrain provide the strength needed for extreme terrain. With finely tuned suspension geometry and precise steering, the Vertex-10 offers a perfect balance of power, durability, and performance for serious rock crawling enthusiasts.

Brushless Power and Precision Electronics

The Vertex-10 is powered by the Hobbywing system, combining a 2812 1700KV brushless motor with a programmable 60A ESC for smooth, efficient, and reliable performance. With 4S capability and an 8.4V BEC, this system delivers exceptional torque and control across challenging terrain. Steering precision comes from the HX-50BL digital servo, featuring durable metal gears and a massive 694oz/in of torque for confident handling. The brushless power system and precision electronics package provide the strength, accuracy, and responsiveness demanded by comp crawling.

Advanced Suspension and Steering Geometry

The Vertex-10 features an advanced suspension and steering system designed for smooth articulation and precise control. Air emulsion, oil-filled shocks with X-ring seals deliver consistent damping and durability across rugged terrain. Double CV joints provide ultra-smooth articulation, even at extreme steering angles, ensuring maximum maneuverability in tight spots. Together, these features create a suspension system that balances durability, flexibility, and precision for serious crawling performance.

Durability

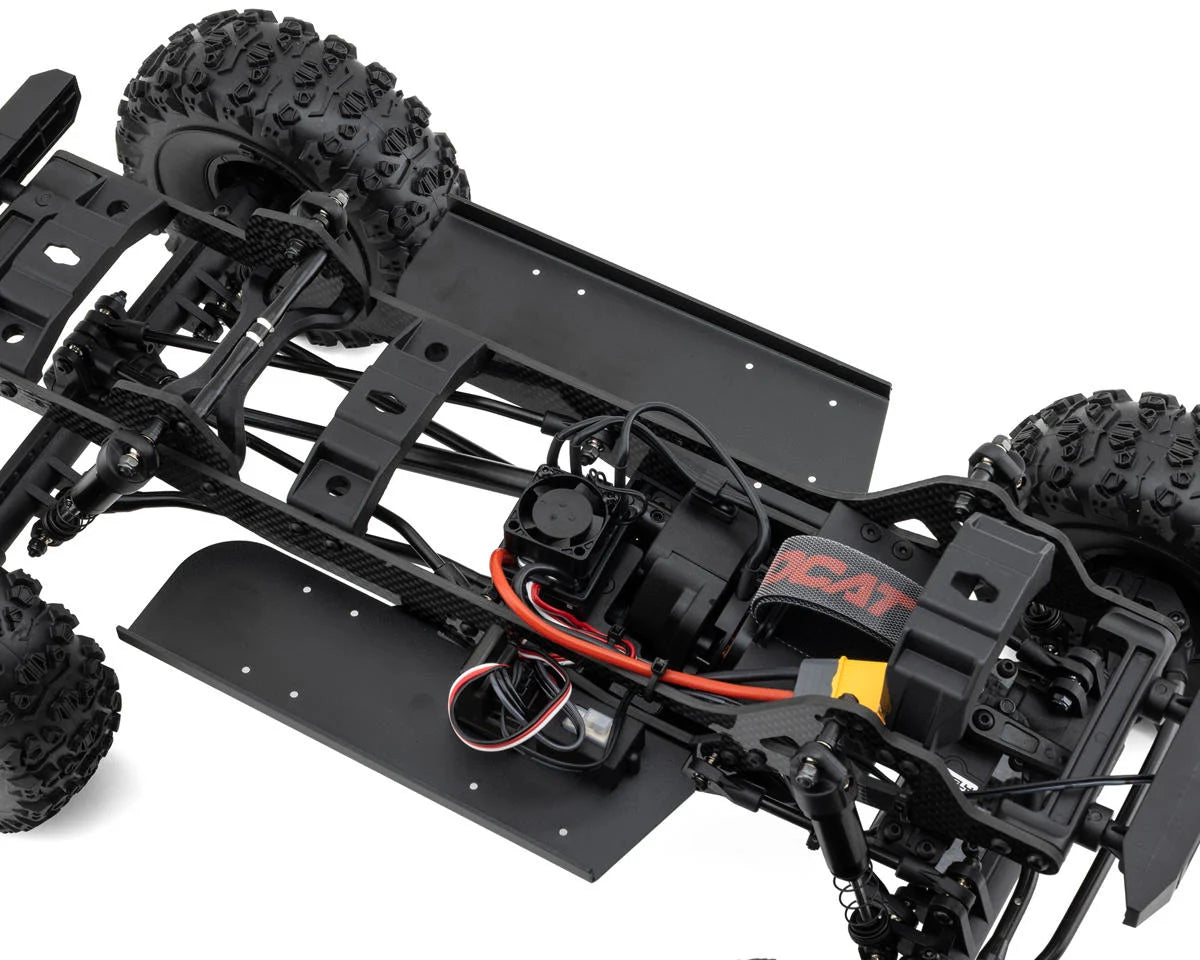

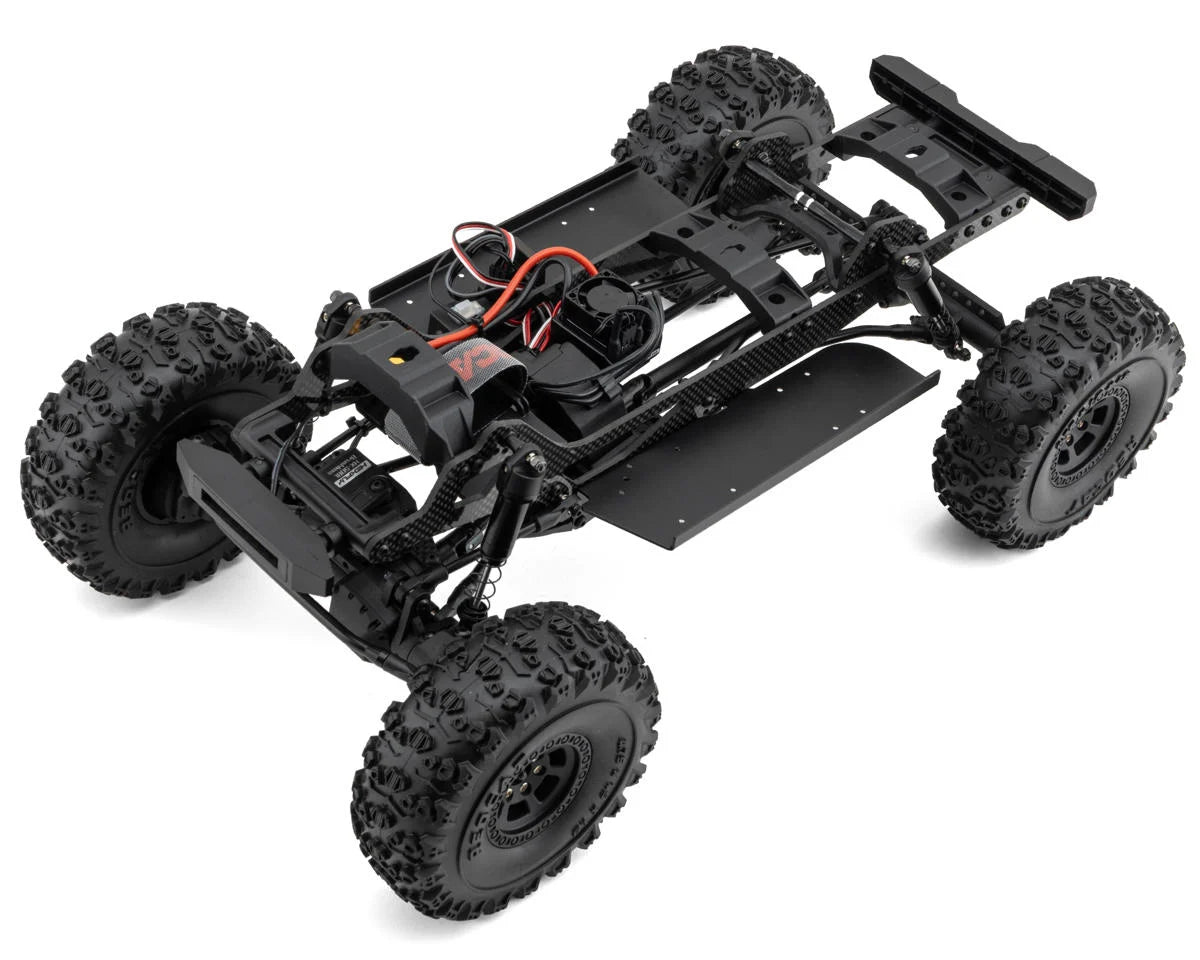

The Vertex-10 is built on a low center of gravity carbon chassis with a forward-mounted motor, delivering stability and strength on demanding terrain. Reinforced solid axles with steel internal tube inserts provide exceptional durability, while hypoid-style ring and pinion gears increase ground clearance and allow the axle housing to slide smoothly over obstacles. Splined metal driveshafts ensure a constant, reliable connection, with angled ends designed to clear rocks and uneven terrain. High-clearance rear links, adjustable suspension geometry, and a tilt body mounting system further enhance toughness and performance. Combined, these features create a crawler that's engineered to withstand extreme conditions while maintaining precision and control.

Features:

• 3mm Carbon Fiber Frame rails
• 10 degree skid plate angle
• High clearance links
• Multiple battery mounting locations
• Clipless body mounting
• Heavy duty axles with steel tube inserts
• Weighted front portal box
• 58 Degrees of steering angle

Brushless Power and Precision Electronics

The Vertex-10 is powered by the Hobbywing system, combining a 2812 1700KV brushless motor with a programmable 60A ESC for smooth, efficient, and reliable performance. With 4S capability and an 8.4V BEC, this system delivers exceptional torque and control across challenging terrain. Steering precision comes from the HX-50BL digital servo, featuring durable metal gears and a massive 694oz/in of torque for confident handling. The brushless power system and precision electronics package provide the strength, accuracy, and responsiveness demanded by comp crawling.

Advanced Suspension and Steering Geometry

The Vertex-10 features an advanced suspension and steering system designed for smooth articulation and precise control. Air emulsion, oil-filled shocks with X-ring seals deliver consistent damping and durability across rugged terrain. Double CV joints provide ultra-smooth articulation, even at extreme steering angles, ensuring maximum maneuverability in tight spots. Together, these features create a suspension system that balances durability, flexibility, and precision for serious crawling performance.

Durability

The Vertex-10 is built on a low center of gravity carbon chassis with a forward-mounted motor, delivering stability and strength on demanding terrain. Reinforced solid axles with steel internal tube inserts provide exceptional durability, while hypoid-style ring and pinion gears increase ground clearance and allow the axle housing to slide smoothly over obstacles. Splined metal driveshafts ensure a constant, reliable connection, with angled ends designed to clear rocks and uneven terrain. High-clearance rear links, adjustable suspension geometry, and a tilt body mounting system further enhance toughness and performance. Combined, these features create a crawler that's engineered to withstand extreme conditions while maintaining precision and control.

Features:

• 3mm Carbon Fiber Frame rails
• 10 degree skid plate angle
• High clearance links
• Multiple battery mounting locations
• Clipless body mounting
• Heavy duty axles with steel tube inserts
• Weighted front portal box
• 58 Degrees of steering angle
